RTS32 Wall switch Format B5
The RTS32 wall switch from the Format B5 range is a battery-powered wall transmitter that must be surfacemounted in dry rooms.
The function of the wall switch is defined by combining it with different rockers.
The transmitter is compatible with the Busch-Jaeger switch range. The transmitter module is combined with the desired rocker, simply clicked into the cover frame and is immediately operational. It can then be mounted on the wall using either adhesive pads or screws.
The RTS32 is generally used as a light switch to turn lights ON or OFF with a 2-button operation as well as to control roller shutters.
The transmitter is compatible with the Busch-Jaeger switch range. The transmitter module is combined with the desired rocker, simply clicked into the cover frame and is immediately operational. It can then be mounted on the wall using either adhesive pads or screws.
The RTS32 is generally used as a light switch to turn lights ON or OFF with a 2-button operation as well as to control roller shutters.
RTS32E5002A11-02K
Technical specifications
| Coding | Easywave |
| Frequency | 868,30 MHz |
| Channels | 1 or 2 |
| Range | typically 150 m in good free-field conditions |
| Power supply | 1x 3V-battery, CR2032 |
| Operation | transmission lasts as long as the button is pressed (maximum 36 seconds) |
| Operating temperature | -20 °C to +60 °C |
| Dimensions (W/L/H) | rocker: 54/54/7 mm mounting plate: 71/71/1,8 mm |
| Compatibility *) | switch ranges: Reflex SI, Reflex SI Linear Busch-Duro 2000 SI, Busch-Duro 2000 SI Linear with spacer ring, also compatible with: carat, solo, Busch-axcent, future linear |
| Weight | 24 g (including battery) |
| Color | white similar to RAL 9003 ivory white similar to RAL 1013 |
Rockers
Please order separately!

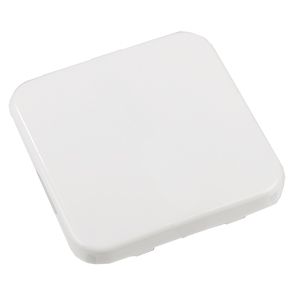

1x ON/OFF or 2x PULSE
RTS32-ACC-01-xxP
RTS32-ACC-01-xxP

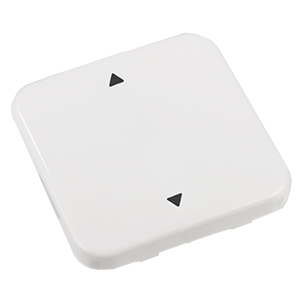

1x UP/DOWN
RTS32-ACC-02-xxP
RTS32-ACC-02-xxP
Scope of delivery
- Transmitter module including battery
- Mounting plate
- Adhesive pad
- Operating manual
Accessories (optional)
| RTS32-ACC-03-01P | Mounting plate, white |
RTS32-ACC-01-01P
Models
| Product number | Description |
|---|---|
| RTS32E5002A11-02K | Wall switch for single rocker, Easywave, Format B5 |
| + RTS32E-ACC-01-02P | Single rocker, 1x ON/OFF, Format B5, for RTS32, white |
| + RTS32E-ACC-01-07P | Single rocker, 1x ON/OFF, Format B5, for RTS32, ivory white |
| + RTS32E-ACC-02-02P | Single rocker, 1x UP/DOWN, Format B5, for RTS32, white |
| + RTS32E-ACC-02-07P | Single rocker, 1x UP/DOWN, Format B5, for RTS32, ivory white |
