The RTS41 stationary transmitter is used to forward an analogue telephone call signal to an external Easywave receiver, such as RCP24, RCP25 or RCJ32.

When a call is received, the RTS41 transmits a radio signal to an Easywave receiver and switches the receiver according to the selected operating mode.

RTS41E5001-01-01K
Technical specifications
Coding Easywave
Frequency 868,30 MHz
Channels 1
Range typically 150 m in good free-field conditions
Power supply via the ringing voltage of a telephone line
Operation by telephone call
Function forwarding an analogue telephone call signal
Operating temperature -20 °C to +60 °C
Dimensions (W/L/H) 70/64/35 mm
Weight 32 g
Color white similar to RAL 9003
Scope of delivery
  • Surface-mounted transmitter
  • RJ11/RJ11 connection cable
    (length 54 cm)
  • TAE-N/RJ11 adapter
  • Adhesive pad
  • Operating manual
Models
Product number Description
RTS41E5001-01-01K Surface-mounted transmitter, Easywave, 1x PULSE, phone call forwarding, TAE-N, white

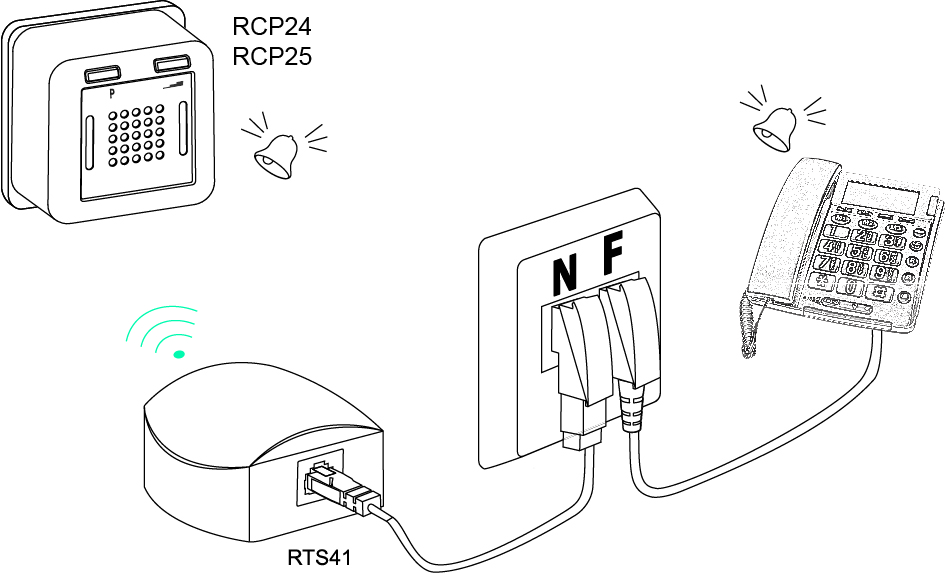

Connection Diagram
