RTS34 Wall switch Format B6
The RTS34 wall switch from the Format B6 range is a battery-powered wall transmitter that must be surfacemounted in dry rooms.
The function of the wall switch is defined by combining it with different rockers.
The transmitter is compatible with the Busch-Jaeger switch range. The transmitter module is combined with the desired rocker, simply clicked into the cover frame and is immediately operational. It can then be mounted on the wall either using either adhesive pads or screws.
The RTS34 is generally used as a light switch to turn lights ON or OFF using two buttons (2-button operation) as well as to control roller shutters.
The transmitter is compatible with the Busch-Jaeger switch range. The transmitter module is combined with the desired rocker, simply clicked into the cover frame and is immediately operational. It can then be mounted on the wall either using either adhesive pads or screws.
The RTS34 is generally used as a light switch to turn lights ON or OFF using two buttons (2-button operation) as well as to control roller shutters.
RTS22E5002A11-02K
Technical specifications
| Coding | Easywave |
| Frequency | 868,30 MHz |
| Channels | 1 or 2 |
| Range | typically 150 m in good free-field conditions |
| Power supply | 1x 3V-battery, CR2032 |
| Operation | transmission lasts as long as the button is pressed (maximum 36 seconds) |
| Operating temperature | -20 °C to +60 °C |
| Dimensions (W/L/H) | rocker: 63/63/8 mm mounting plate: 71/71/1,8 mm |
| Compatibility *) | switch ranges: carat, solo, Busch-axcent, future linear |
| Weight | 24 g (including battery) |
| Color | white similar to RAL 9003 ivory white similar to RAL 1013 |
Rockers
Please order separately!

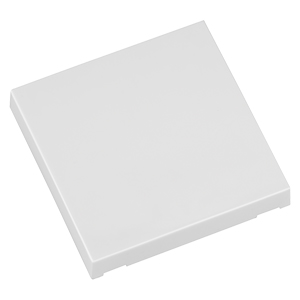

1x ON/OFF | 2x PULSE
RTS34-ACC-01-xxP
RTS34-ACC-01-xxP

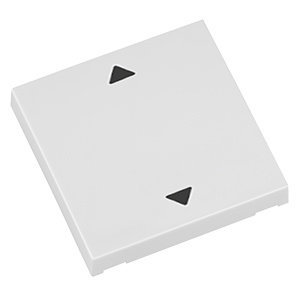

1x UP/DOWN
RTS34-ACC-02-xxP
RTS34-ACC-02-xxP
Scope of delivery
- Transmitter module including battery
- Mounting plate
- Adhesive pad
- Operating manual
Accessories (optional)
| RTS22-ACC-01-01P | Mounting plate, white |
RTS22-ACC-01-01P
Models
| Product number | Description |
|---|---|
| RTS22E5002A11-02K | Wall switch for single rocker, Easywave, Format 55 / Format B6 |
| + RTS34-ACC-01-02P | Single rocker, 1x ON/OFF, Format B6, for RTS22, white |
| + RTS34-ACC-01-07P | Single rocker, 1x ON/OFF, Format B6, for RTS22, ivory white |
| + RTS34-ACC-02-02P | Single rocker, 1x UP/DOWN, Format B6, for RTS22, white |
| + RTS34-ACC-02-07P | Single rocker, 1x UP/DOWN, Format B6, for RTS22, ivory white |
Assembly Instructions
