The RTS33 wall switch from the Format B5 range is a battery-powered wall transmitter that must be surfacemounted in dry rooms. The function of the wall switch is defined by combining it with different rockers.

The transmitter is compatible with the Busch-Jaeger switch range. The transmitter module is combined with the desired rocker, simply clicked into the cover frame and is immediately operational. It can then be mounted on the wall using either adhesive pads or screws.

The RTS33 is generally used as a light switch to turn lights ON or OFF with a 2-button operation as well as to control roller shutters.

RTS33E5004A11-02K
Technical specifications
Coding Easywave
Frequency 868,30 MHz
Channels 1, 2 or 4
Range typically 150 m in good free-field conditions
Power supply 1x 3V-battery, CR2032
Operation transmission lasts as long as the button is pressed
(maximum 36 seconds)
Operating temperature -20 °C to +60 °C
Dimensions (W/L/H) rockers: 27/54/7 mm
mounting plate: 71/71/1,8 mm
Compatibility *) switch ranges:
Reflex SI, Reflex SI Linear, Busch-Duro 2000 SI, Busch-Duro 2000 SI Linear

with spacer:
carat, solo, Busch-axcent, future linear
Weight 24 g (including battery)
Color white similar to RAL 9003
ivory white similar to RAL 1013
*) The names, terms and symbols may be protected brand names and trademarks belonging to their respective companies/legal owners.
Rockers
Please order separately!

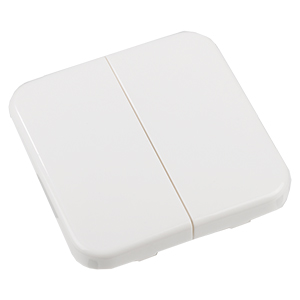

2x ON/OFF | 4x PULSE
RTS33-ACC-01-xxP

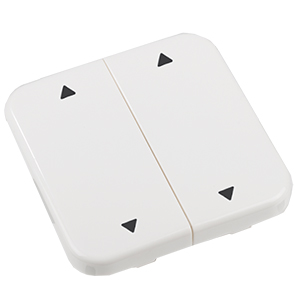

2x UP/DOWN
RTS33-ACC-02-xxP

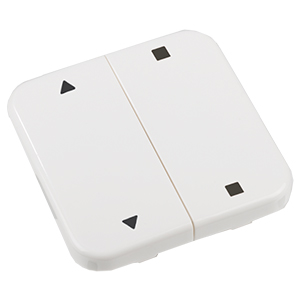

1x UP/STOP/DOWN
RTS33-ACC-03-xxP
Scope of delivery
  • Transmitter module including battery
  • Mounting plate
  • Adhesive pad
  • Operating manual
Accessories (optional)
RTS32-ACC-03-01P Mounting plate, white

RTS32-ACC-01-01P
Models
Product number Description
RTS33E5004A11-02K Wall switch for double rockers, Easywave, Format B5
+  RTS33-ACC-01-02P Double rockers, 2x ON/OFF, Format B5, for RTS33, white
+  RTS33-ACC-01-07P Double rockers, 2x ON/OFF, Format B5, for RTS33, ivory white
+  RTS33-ACC-02-02P Double rockers, 2x UP/DOWN, Format B5, for RTS33, white
+  RTS33-ACC-02-07P Double rockers, 2x UP/DOWN, Format B5, for RTS33, ivory white
+  RTS33-ACC-03-02P Double rockers, 1x UP/STOP/DOWN, Format B5, for RTS33, white
+  RTS33-ACC-03-07P Double rockers, 1x UP/STOP/DOWN, Format B5, for RTS33, ivory white
