With the MiniPager RRP01 calls from up to 64 Easywave transmitters can be received and signaled. The signaling is optical, acoustic and via vibrations. An individual text can be displayed on the MiniPager for each transmitter.

The integrated battery has a running time of approx. 48 hours and is recharged within approx. 3 hours. The battery can be charged using the supplied USB cable or the optionally available charging cradle.
The charging cradle can be expanded by up to 9 elements for the use of several MiniPagers.

A Windows PC is required to configure the MiniPager.

RRP01E5023A01-K
Technical specifications
Coding Easywave
Up to 64 transmitters can be programmed
Frequency 868,30 MHz
Display LCD, 2 x 16 characters
Display resolution 128 x 32 Pixel
Power supply Battery Li-Ion 3,7 V / 750 mAh
Charging interface USB Mini B or charging cradle
Charging time 0-100% in approx. 3h
Runtime approx. 48h when fully charged
Operating temperature +10 °C to +40 °C
Dimensions 62 x 96,5 x 13,6 mm (w/o clip)
Weight approx. 73 g (w/ clip)
Color gray
Scope of delivery
  • MiniPager
  • USB A to USB Mini B cable
  • Operating manual
Accessories (optional)

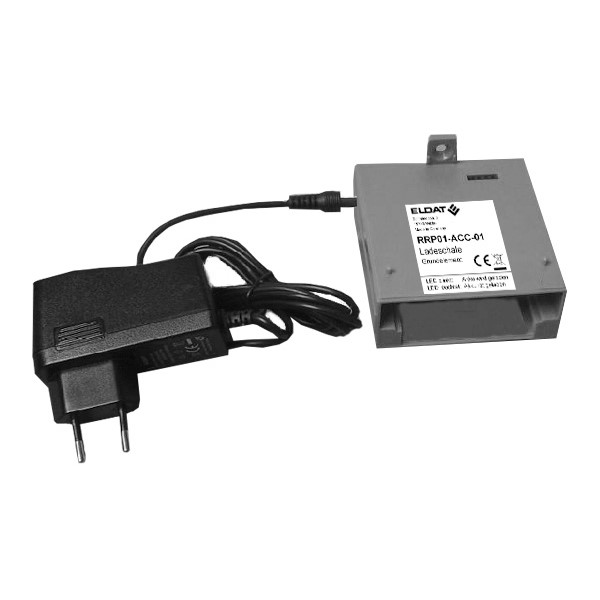

RRP01-ACC-01 Charging cradle, for MiniPager RRP01, base element, power supply

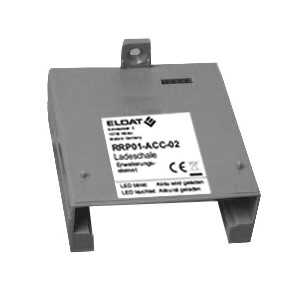

RRP01-ACC-02 Charging cradle, for MiniPager RRP01, extension element, with adhesive strips

RRP01-ACC-01

RRP01-ACC-02
Models
Product numbers Description
RRP01E5023A01-01K MiniPager, Easywave, 64 memory slots, display, battery, gray
