The RCP23 plug-in socket receiver receives transmission codes from programmed Easywave radio transmitters and triggers an 1-second pulse on the connected device via the pulse output. The pulse can also be triggered via a button on the RCP23.

With the RCP23, it is therefore very easy to retrofit or convert garage door motors with a radio interface.

The RCP23 also comes with a power outlet which is not switched and thus remains fully usable.

RCP23EK5001A01-K
Technical specifications
Coding Easywave
Up to 32 transmitters can be programmed.
Frequency 868,30 MHz
Channels 1
Power supply 230 V AC, 50 Hz
Power consumption 0.4 W standby
Operating mode PULSE (1s)
Outputs 1x potential free 24V relay contact
1x protective contact plug (D/A/NL/S/N)
Maximum contact load pulse output: 1 A / 24 V DC
mains voltage (not switchable): 16A / 230 V AC
Operating temperature -10 °C to +35 °C
Dimensions 71,4 x 71,4 x 75,5 mm
Color white similar to RAL 9003
Plug system
Scope of delivery
  • Plug-in socket receiver
  • Cable (length 150 cm)
  • Operating manual
Models
Product numbers Description
RCP23EK5001A01-K Plug-in socket receiver, Easywave, 230V, 1x pulse output, potential-free, D/A/NL/S/N, white

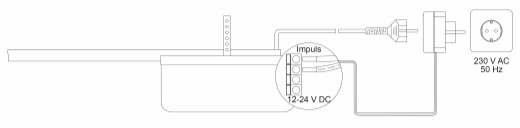

Wiring diagram
