RCP20 Plug-in socket receiver
The bidirectional RCP20 plug-in socket receiver is simply inserted between the socket and the device that needs to be controlled.
After programming up to 32 Easywave transmitters, the device to be controlled can be switched on and off at will. Optionally, operation is also possible via a button on the receiver.
In addition, an Easywave neo server can be programmed into the receiver in order to use the bidirectional functionalities.
After programming up to 32 Easywave transmitters, the device to be controlled can be switched on and off at will. Optionally, operation is also possible via a button on the receiver.
In addition, an Easywave neo server can be programmed into the receiver in order to use the bidirectional functionalities.
Energy efficient:
The RCP20 consumes only 0.4 W in standby mode.
RCP20EN5001A01-K
Technical specifications
| Coding | Easywave neo Up to 32 transmitters can be programmed. 1 Easywave (neo) server can be programmed |
| Frequency | 868,30 MHz |
| Channels | 1 |
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 0.4 W standby 0.8 W relay switched (without load) |
| Operating modes | ON/OFF (2-button operation) ON/OFF (1-button operation) TIMER (1 second to 30 hours adjustable) LOGIC (1-button operation) DEAD MAN |
| Output | 1x protective contact (D/A/NL/S/N) |
| Maximum contact load | 16A / 230V AC |
| Operating temperature | -10 °C to +35 °C |
| Dimensions | 71,4 x 71,4 x 75,5 mm |
| Color | white similar to RAL 9003 |

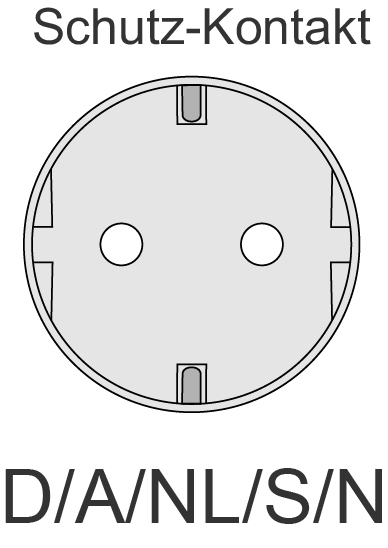

Plug system
Scope of delivery
- Plug-in socket receiver
- Operating manual
- Quickstart guide
Models
| Product numbers | Description |
|---|---|
| RCP20EN5001A01-K | Plug-in socket receiver, Easywave neo, 230V, 1x normally open, potential-loaded, D/A/NL/S/N, white |
