The RCJ14 flush-mounted dimmer can be used to control and dim lighting of up to 250 W.

Ohmic, capacitive and inductive loads can be dimmed. This includes both dimmable energy saving lamps (ESL) and dimmable LEDs.

The RCJ14 can be operated with an Easywave radio transmitter or an external button connected to the dimmer.

RCJ14E5001-01-23K
Technical specifications
Coding Easywave
Up to 32 transmitters can be programmed.
POTA(only 2-button operation)
Frequency 868,30 MHz
Channels 1
Power supply 230 V AC, 50 Hz
Power Consumption 0,7 W standby
Operating modes dim with memory (2- and 1-button operation)
dim w/o memory (2- and 1-button operation)
dim by external button (1-button operation)
control fixed brightness levels
(2- and 1-button operation)
Input external mechanical button
Outputs electronic switch
Type of dimmer leading edge or trailing edge
Maximum contact load see table of loads
Operating temperature -20 °C to +60 °C
Dimensions 48 x 48 x 25 mm
Scope of delivery
  • Flush-mounted dimmer
  • Operating manual
Models
Product numbers Description
RCJ14E5001-01-23K Flush-mounted dimmer, Easywave, 230V, 1x dimming, potential-loaded, button input

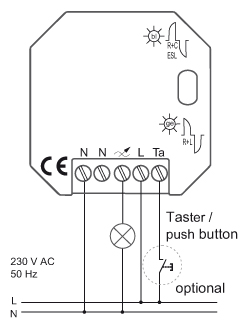

Wiring diagram




Table of loads
type of load max. load
resistive load: lamps, 230 V halogen lamps etc. 250 W
inductive load: halogen lamps with wound transformers
(min. load of transformer 85%)		 20 - 250 VA
LED + ESL 7 - 100 VA
capacitive load: halogen lamps and electronic transformers 250 VA
